Raw materials and production processes

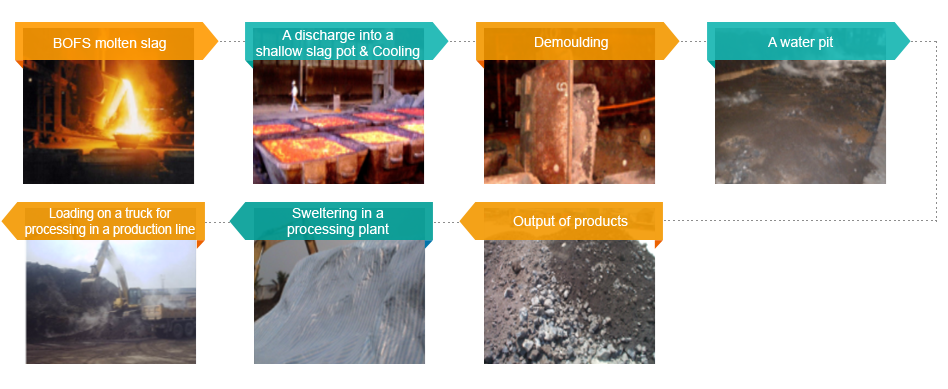

The lump-making-sweltering-disintegrating method is applied to manufacture asphalt concrete graded aggregates. Basic oxygen furnace slag at 1200℃ is poured into a shallow slag pot for initial cooling. The slag with reduced surface temperature is transported to a puddle, and then sweltered in a stockpile, which will make it disintegrate into aggregates naturally so that flattened graded aggregates can be collected. One of their features is that crushing is no longer necessary in the subsequent processing procedures. Repeated screening can be carried out to obtain aggregates with different specifications. There is high strength in these aggregates; their appearance is square-like or multi-angular, and they are particularly suitable to serve as asphalt concrete paving materials.

Product Specification

The specifications of this product are in compliance with the CNS 15310 standards on "steel slag aggregates for bituminous paving mixtures"

Features

  1. The oleophilicity of this product is better than that of natural aggregates. In addition, mastic asphalt will not exfoliate easily.
  2. Its retention strength index is higher than that of natural aggregates; it is more resistant to exfoliation.
  3. The value of its Los Angeles abrasion test is lower than that of natural aggregates.
  4. There are many fracture surfaces and high angular rates. When used to build roads, this product is better than natural aggregates.
  5. Its flattening ratio is lower than that of natural aggregates. This product will not fracture and be downgraded easily when being rolled for paving.
  6. When this product is used in asphalt concrete, its stability and dynamic modulus of elasticity will be enhanced.
  7. The rut resistance of this product is excellent so that pavement skid resistance can be enhanced.

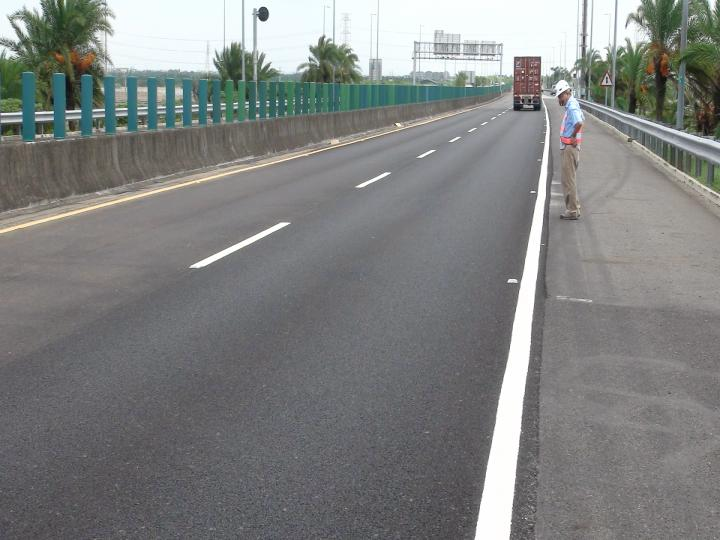

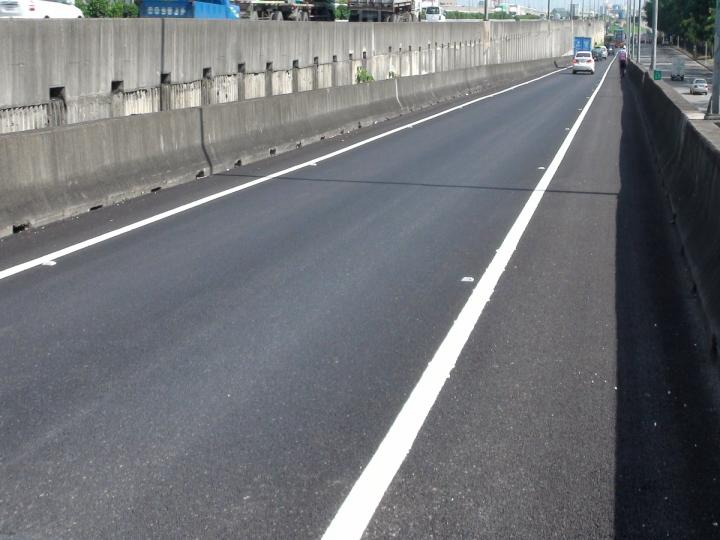

Finished engineering projects

Environmentally Friendly Products

Recycled green building material labels

  • Asphalt paving aggregates AC2(Certificate GBM0100402)
  • Asphalt paving aggregates AC3(Certificate GBM0100406)
  • Asphalt paving aggregates AC6(Certificate GBM0100405)

Product footprints

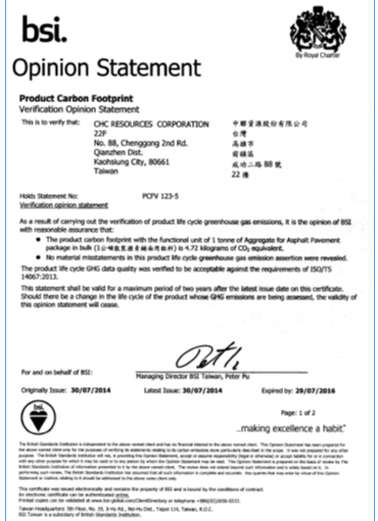

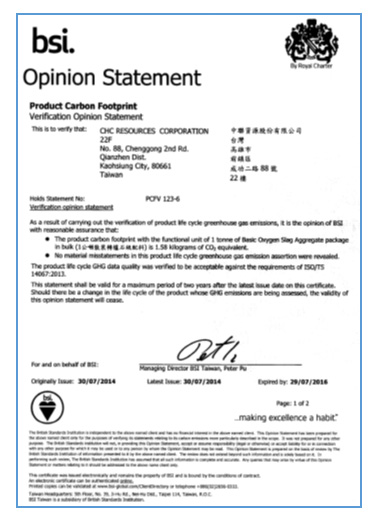

According to the guidelines of the ISO/TS14067:2013 product carbon footprint quantification and communication requirements by BSI, the carbon footprint inventory of BOFS asphalt paving aggregates was only 4.72 Kg CO2e/1000Kg, which was lower than that of natural aggregates (7.24 Kg CO2e/1000Kg). Therefore, when BOFS asphalt paving aggregates are used for road construction, they not only enhance the quality of road paving but also save energy and reduce carbon emissions.

Environmentally Friendly Label

Recycled green building material labels
ISO/TS 14067 Product Carbon Footprints by BSI
Modified slag graded materials
